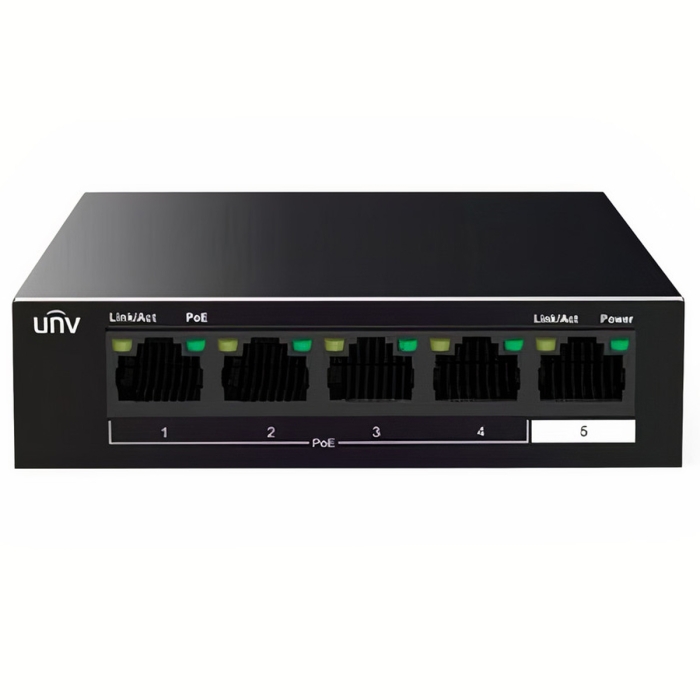

UNV Switcheur POE - 4 ports POE + 1 Link

UNV - Commutateur PoE 4 ports

4x ports 10 / 100Mbps prennent en charge PoE, transmission jusqu'à 250 m Le NSW2010-5T-POE-IN est un commutateur PoE à 4 ports, qui fournit 4 ports PoE 10 / 100Mbps et 1 port 10 / 100Mbps. Tous les ports prennent en charge la vitesse filaire, la commutation non bloquante et le MDI / MDIX automatique. Outre les fonctionnalités de commutation courantes, NSW2010-5T-POE-IN prend en charge le mode EXTEND spécial pour la vidéosurveillance. Lorsque le mode EXTEND est activé, la distance de transmission avec Uniview IPC peut atteindre jusqu'à 250 m.

Packet forwarding rate 0.74Mpps
Switching capacity 1Gbps
EXTEND mode Standard: the switch functions as a common unmanaged switch and all the ports of the switch
can communicate with each other.
Extend Mode: If the extend mode is enabled, the transmission distance of both power and data
will extend up to 250m(10Mbps), this funcation can replace the extender and parts of the Fiber. It
will extend the distance of the whole system and save the cost of the project.
Status LEDs Link/Act (steady yellow): link is normal
Link/Act (flashing yellow): data is being forwarded
Link/Act (off): no link
PoE (steady green): the port is powering a powered device properly
PoE (off): the port is not connected to any powered device or is not supplying power
Power (steady green): AC input is normal
Power (off): AC input is abnormal
PoE Port 1 to Port 4 support standard IEEE802.3at/af power( maximum power for each port is 30W)，
PoE power type is end-span(12+, 36- and 45+, 78- line pair)
Max PoE capacity: 57.8W
Consumption ≤ 63.7 W
DC voltage 51 V , 1.25A
Operating temperature 0°C-40°C (32°F-104°F)
Operating humidity 10%-90% non-condensing
Storage temperature -40°C-70°C (-40°F-158°F)
Storage humidity 5%-90% non-condensing
Dimensions (W×D×H) 100mm*100mm*26mm
Certification FCC,CE,RoH
